FUNSHION DC 12V 1 CH Wireless Remote Control Relay Switch Module Learning Code DC 12V RF Superheterodyne Receiver 1CH Controller
Technical Data Of Receiver:
Free Shipping
on all orders over $199
Brand Authenticity
100% genuine products
Free Returns
online and in-store
Free Gift Wrapping
on all orders over $69
Technical Data Of Receiver:
Model Number:KR1201A-4
Input voltage: 12V
Working current: 10A
Maximum load power: 110W
Frequency: 433Mhz
Support encoding format: EV1527

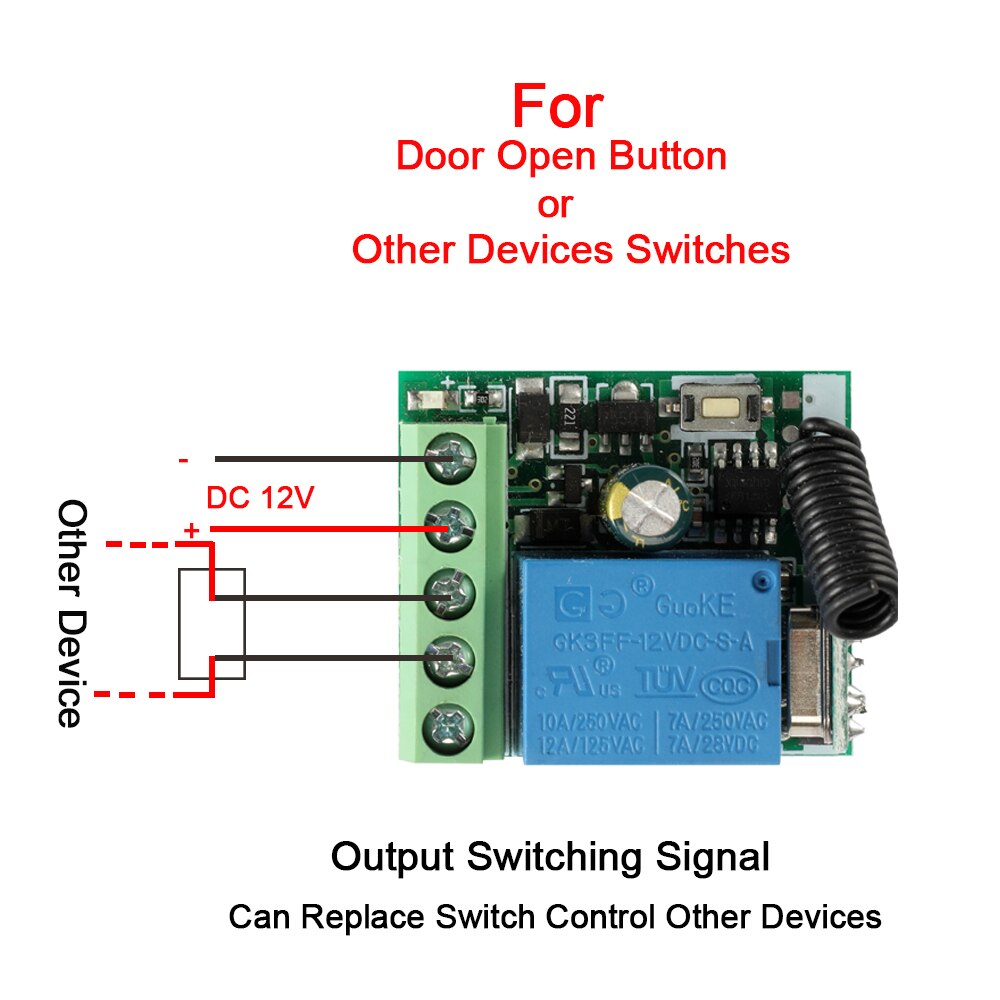

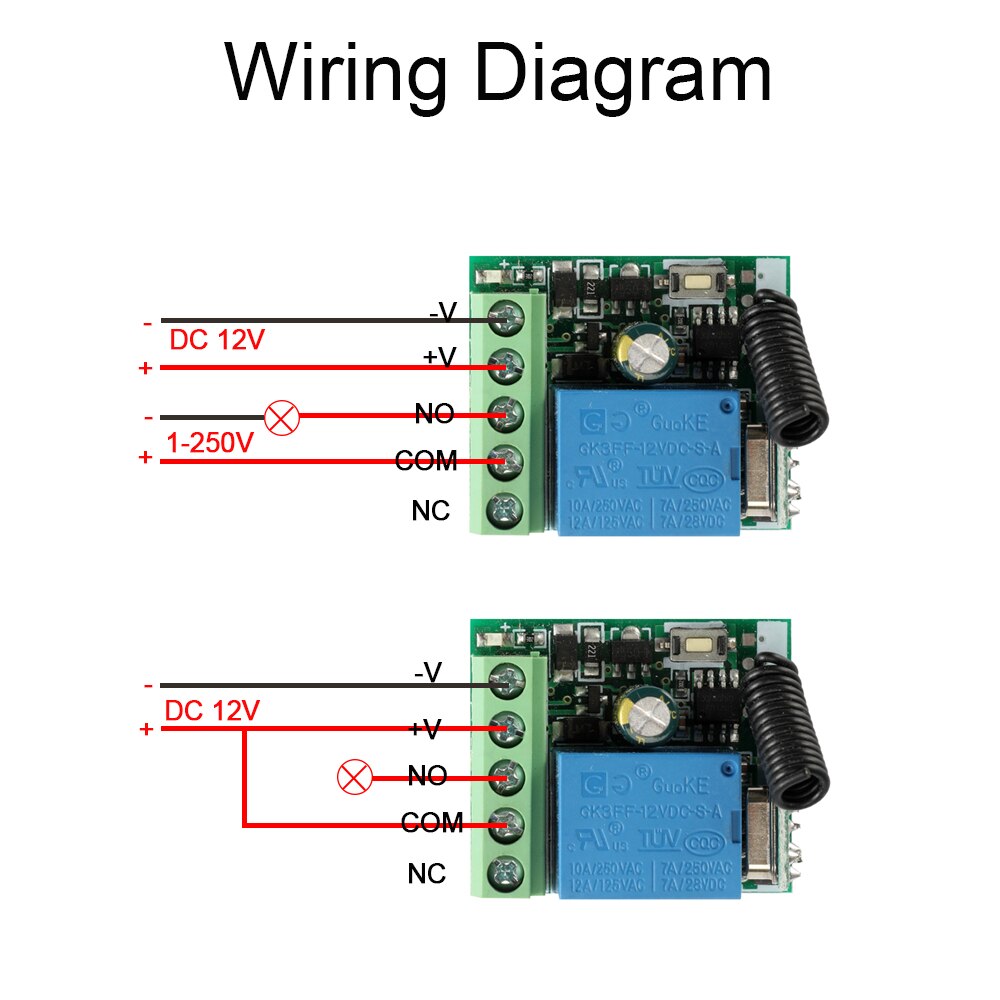

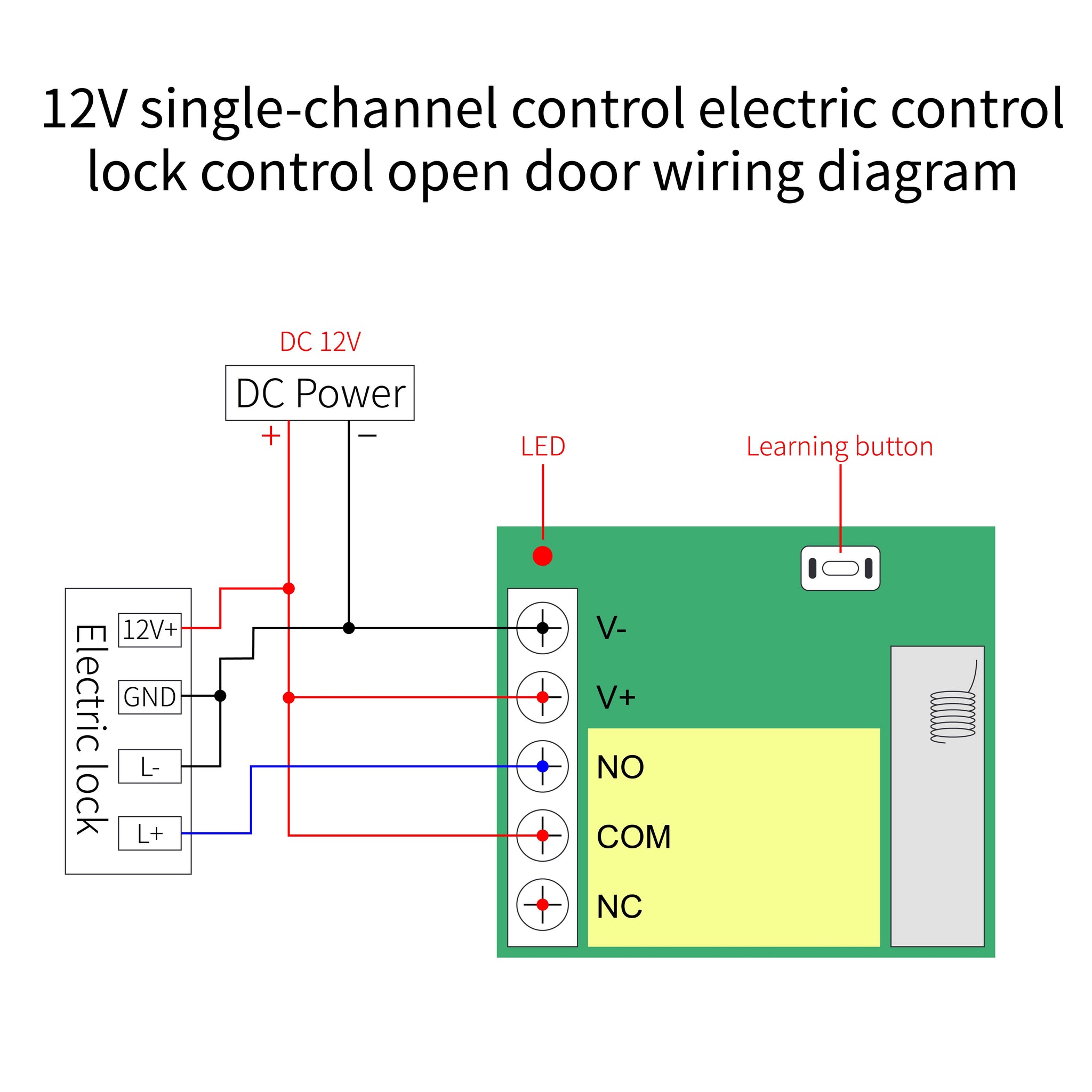

Wiring method: NC COM NO
Working mode: Momentary, Toggle, Latching Time delay (5s ,10s ,15s )
Package List:

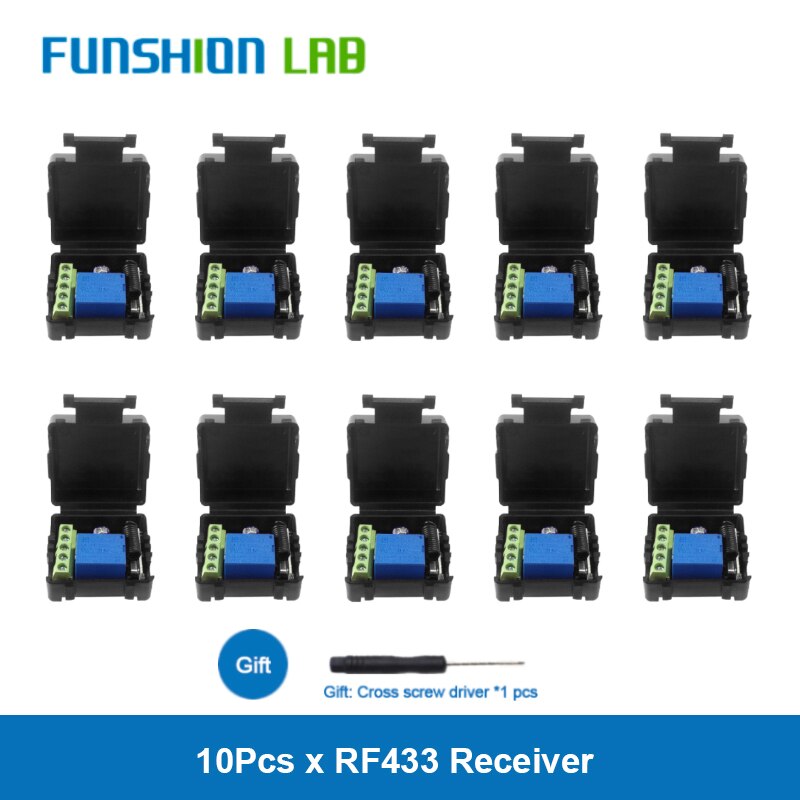

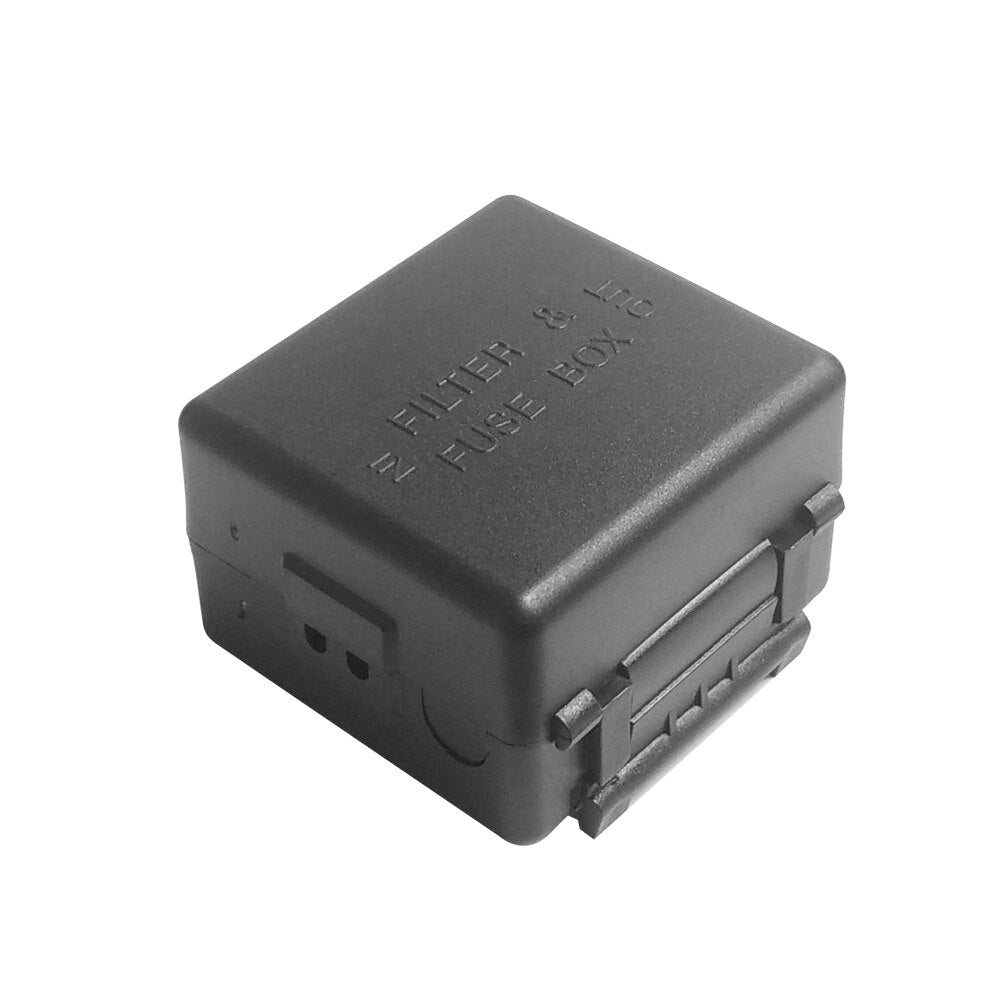

10* KR1201A-4 Receiver Module (Include Shell)
About Working mode:
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting mode.Wait for a moment, the LED will be off , it comes into learning state.Push the remote button, LED indicator on the receiver board will flash then come off.After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code: (Toggle)
Press the learning key on the receiver twice time, it comes into toggle setting mode.Wait for a moment, the LED will be off , it comes into learning state.Press the remote button, LED indicator on the receiver board will flash then come off.After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code:( Latching)
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.
For example: Button A = ON, Button B = OFF
Press the learning key on the receiver triple time, it comes into latching mode .Wait for a moment, the LED indicator on the receiver board will flash then come off.Press the remote button A. LED flash for 5 times.Press the remote button B. LED flash for 5 timesAfter 3 seconds, the LED indicator will be on again, learning successfully.A = ON, B = OFF.
.
