10 Pcs Universal Wireless 4 Buttons 433MHz RF Transmitter Remote Control For Gate Garage Door Opener Learning Code Key Fob DIY
Brand Name: FUNSHION LAB
Use: Universal
Use: Lighting
Use: Electric Door
Use: Automated curtains
Use: SWITCH
Certification: CE
Origin: CN(Origin)
Wireless Communication: RF
Support APP:...
Free Shipping
on all orders over $199
Brand Authenticity
100% genuine products
Free Returns
online and in-store
Free Gift Wrapping
on all orders over $69
Brand Name: FUNSHION LAB
Use: Universal
Use: Lighting
Use: Electric Door
Use: Automated curtains
Use: SWITCH
Certification: CE
Origin: CN(Origin)
Wireless Communication: RF
Support APP: No
Channel: 4
Package: Yes
Frequency: 433 MHz
Model Number: KT19-117S-4
Working voltage: DC3V
Working current: <25mA
Working frequency: 433MHZ
Transmitting power: +13dbm
Encoding format: EV1527
Working mode: Momentary, Toggle, Latching Time delay
Timer Function: Door Lamp Light Switch
Specifications Of The Remote Control:
Model Number: KT19-117S-4
Operating RF Frequency: 433MHz.
Coded System: 1527 Learning Code.
Working Voltage: DC 3V.
Working Current: <25mA
Transmitting Power: 10mW.
Wireless Operating Distance: 50m(Free Space).
Transmission Rate: 50 ~ 60KHz.
Frequency Deviation: 0.2MHz or -0.2MHz.
Note:
1.This remote control only support the learning code (1527) of the receiver.
2.This remote can not be programmed.
3.It will not work if you only buy the transmitter. it is parts of the remote control system, it needs work with the Remote Control Relay Receiver module to achieve controlling.
4.We don't offer retail package, but we will pack it well before shipped out.
Package Contents:

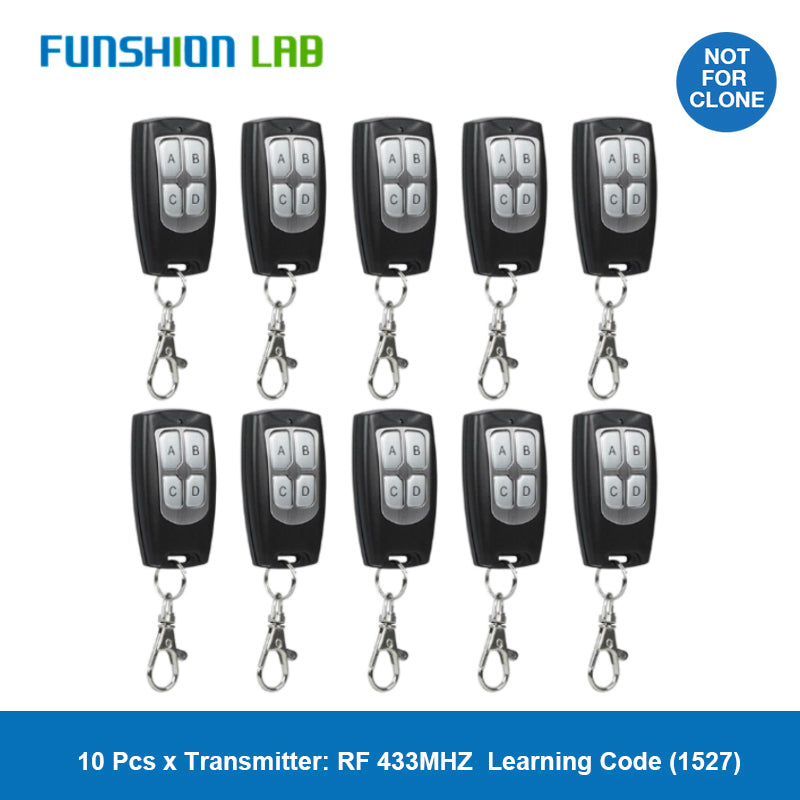

10* KT19-117S-4 433Mhz 4CH Remote Control (Battery Included)
About Working mode:
Momentary: Press the remote button, the relay connects, release the remote button, the relay disconnects.Toggle: Press once the remote button, the relay connects, press the remote button twice, the relay disconnects.Latching: Press the remote button A, the relay connects, press the remote button B, the relay disconnect.
Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting mode.Wait for a moment, the LED will be off , it comes into learning state.Push the remote button, LED indicator on the receiver board will flash then come off.After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code: (Toggle)
Press the learning key on the receiver twice time, it comes into toggle setting mode.Wait for a moment, the LED will be off , it comes into learning state.Press the remote button, LED indicator on the receiver board will flash then come off.After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code:( Latching)
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learning is for ON, the second time learning for OFF.For example: Button A = ON, Button B = OFFPress the learning key on the receiver triple time, it comes into latching mode .Wait for a moment, the LED indicator on the receiver board will flash then come off.Press the remote button A. LED flash for 5 times.Press the remote button B. LED flash for 5 timesAfter 3 seconds, the LED indicator will be on again, learning successfully.A = ON, B = OFF.
Note:
1. Please do not charged operation, you should shut off the power, and operation after testing and correct electricity.
2. Please promptly change battery when remote control voltage is insufficient (when the battery voltage is insufficient, generally get close transmitting).
3. Please pay attention to avoid metal mask,large equipment,strong interference electromagnetic filed when using wireless RF products, and avoid too short distance between the remote control and receiver board.
4. Please avoid abnormal using of the product.Abnormal using will reduce product performance and life, when seriously it may damage the products and even make danger for your safe.
.
