433Mhz RF Wireless Remote Control Switch AC 110V 220V Corridor Room Home Wall Panel Switch Lamp Light LED Bulb Wireless Switches

Please select the package you need, we will send as the option you choose.

Package Included (The 4 options are as follows):

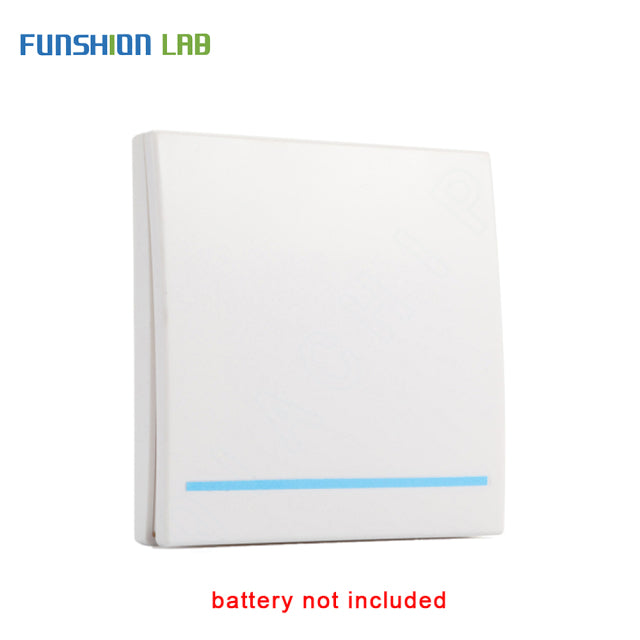

1) Wall Panel Only

1 pcs * 1 button Wall Panel Switch (Not include Battery )

​ 图片链接已损坏

​ 2) Receiver Only

1 pcs * 85-265V 1CH Receiver 图片链接已损坏 ​ 3) 1 Receivers and 1 Wall Panel

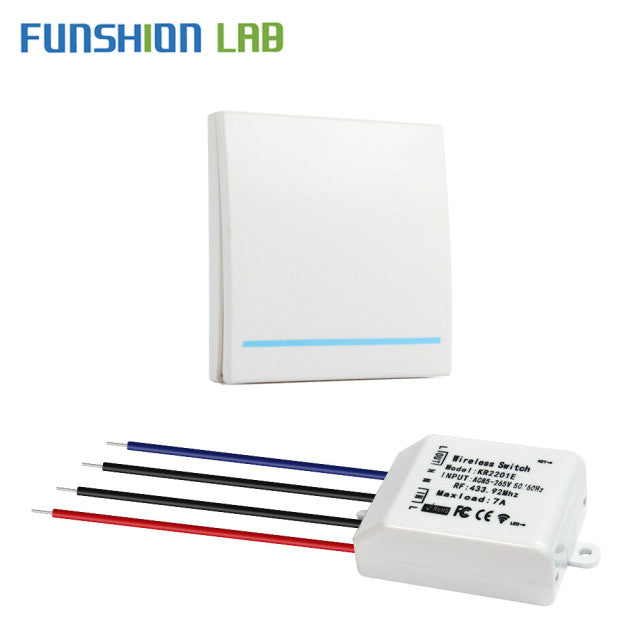

1 pcs * 65-265V 1CH Receiver

1 pcs * 1 button Wall Panel Switch (Not include Battery)图片链接已损坏

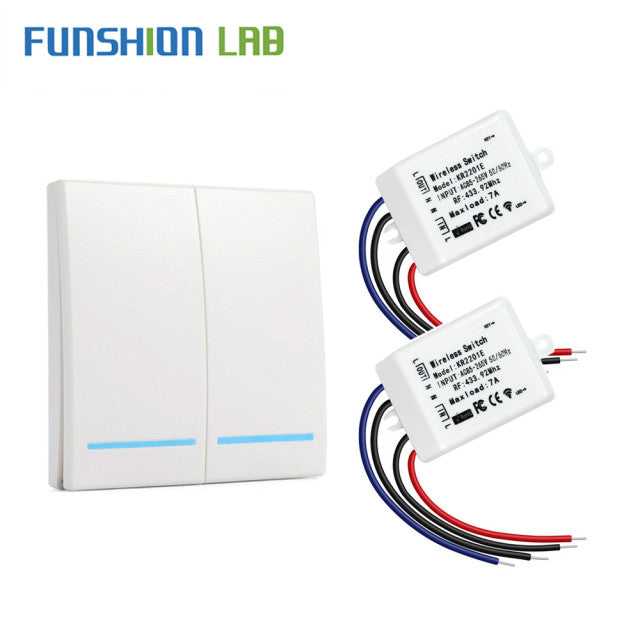

4) 2 Receivers and 1 Wall Panel

2pcs * 65-265V 1CH Receiver

1 pcs * 2 button Wall Panel Switch (Not include Battery)

​ 图片链接已损坏

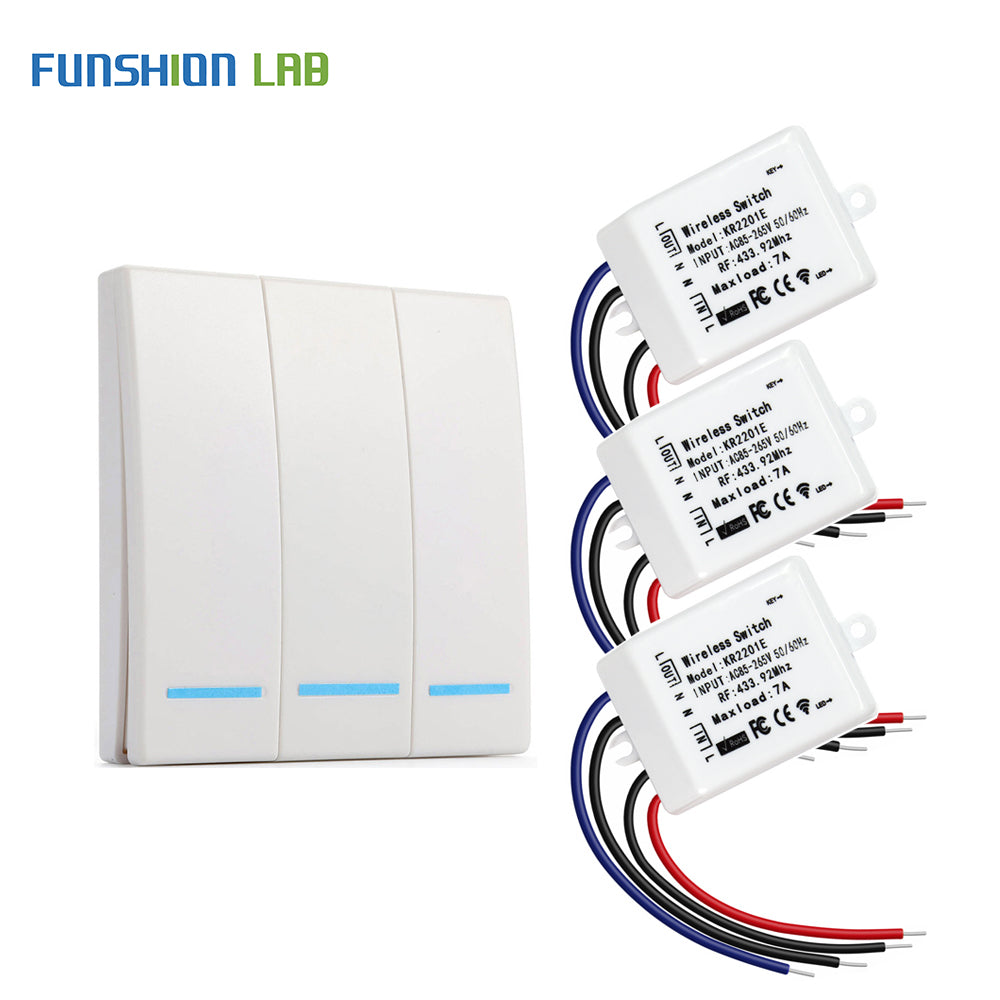

5) 3 Receivers and 1 Wall Panel

2pcs * 65-265V 1CH Receiver

1 pcs * 3 button Wall Panel Switch (Not include Battery)

​ 图片链接已损坏

​ Technical Data Of Receiver:

Input Power: AC 85V - 265V

Standby Current: <7A

RF Frequency: 433MHZ

RF working mode: Superheterodyne

Receive sensitivity: >97dbm

Transmitting distance: 20-50m ( open space)

Decoding mode: MCU software decoding

Remote storage: 20pcs

Support remote type: Learning code 1527Code

Working mode: Momentary, Toggle,Latching

Dimension of PCB: 53.8*31.2mm

About Working mode:

Momentary: Push the remote button , the relay connects, release the remote button , the relay dis-connects.

Toggle: Push once the remote button, the relay connects , push twice the remote button , the relay dis-connects .

Latching: Push the remote button A, the relay connects, push the remote button B, the relay dis-connect.

Clearing the code :

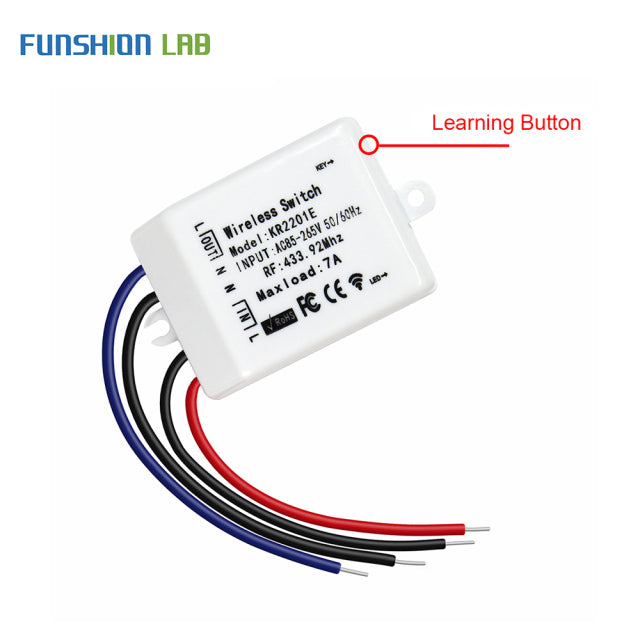

Push the learning button on the receivers for 8 times , the codes will be cleaned .

After clearning the code, all the remote control cannot work any more.

Learning the code: (momentary)

Press the learning key(on the Receiver) once time, the LED (on the Receiver)will blink one time. When the LED is on, press the button of the remote control(You want to let it learn), the LED (on the Receiver)will blink for 3 times and then turn off, Learning to succeed.

Learning the code: ( Toggle )

Press the learning key(on the Receiver) 2 times, the LED (on the Receiver)will blink 2 times. When the LED is on, press the button of the remote control(You want to let it learn), the LED (on the Receiver)will blink for 3 times and then turn off, Learning to succeed.

Learning the code: ( Latching )

Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different button, the first time learnt is for "ON", the second time learnt for "OFF".

For example: button A = ON, button B = OFF

Press the learning key(on the Receiver) 3 times, the LED (on the Receiver)will blink 3 times. When the LED is on, press the button of the remote control(You want to let it learn), Push the remote button A, LED flash for 3 times . Push the remote button B, Led flash for 3 times . After 3 seconds , the LED indicator will be off , Learning to succeed.

A = ON, B = OFF .

NOTE: The system can store for 25 pcs of remotes , if the remote get more than 25 pcs , the receiver will stop working or not working properly. ​

It is a panel wall transmitter that can be stuck onto anywhere. It is a learning code transmitter EV1527 IC Chip. It can be learned into most of the learning code receiver, it can work with any kind learning code receiver in our store. So that the trouble brought by routing is avoided successfully.

Specifications：

Working Voltage: DC12V 27A Battery(CR2032 no included)

Working Frequency: 433mhz

IC Chip: EV1527

Distance: 10-180m (Open Space Long Distance)

Working Current : 20-25ma

Big Button wall Transmitter is your best choice for home or Public Places remote control system.

​

​

​
