FUNSHION AC 250V 110V 220V 1CH 433Mhz Universal Wireless Remote Control Switch Relay Module Receiver For Garage Door Gate Motor
FUNSHION AC 250V 110V 220V 1CH 433Mhz Universal Wireless Remote Control Switch Relay Module Receiver For Garage Door Gate Motor
FUNSHION AC 250V 110V 220V 1CH 433Mhz Universal Wireless Remote Control Switch Relay Module Receiver For Garage Door Gate Motor
Zoom the image with the mouse

FUNSHION AC 250V 110V 220V 1CH 433Mhz Universal Wireless Remote Control Switch Relay Module Receiver For Garage Door Gate Motor

2 sold in last 8 hours
436In stock
51015574-10-pcs

Brand Name: QIACHIP
Use: Universal
Use: Lighting
Use: Electric Door
Use: Automated curtains
Use: SWITCH
Certification: CE
Origin: CN(Origin)
Wireless Communication: RF
Support APP: No
Channel:...

Please hurry, only 436 left in stock

$50.00 $29.50
Size Guide

customers are viewing this product
FUNSHION AC 250V 110V 220V 1CH 433Mhz Universal Wireless Remote Control Switch Relay Module Receiver For Garage Door Gate Motor

Brand Name: QIACHIP
Use: Universal
Use: Lighting
Use: Electric Door
Use: Automated curtains
Use: SWITCH
Certification: CE
Origin: CN(Origin)
Wireless Communication: RF
Support APP: No
Channel: 1
Package: Yes
Frequency: 433 MHz
Model Number: Universal Wireless RF Relay Remote Control For Smart Home Receiver
Input Voltage: AC 85V - 250V
Quiescent Current: 5mA
Output Terminal: NO,COM,NC
RF Working Mode: Superheterodyne
Modulation Mode: ASK
Working Mode: Momentary Toggle and Latching Button
Application Example 1: Light, Home Security Alarm System
Application Example 2: Smart Home Light, Interrupteur
PCB Dimension: 6.5 * 3.2 * 1.6 cm
Shell: Yes



Features:
*Support Multiple Working Mode: Momentary, Toggle and Latching Mode.
*Support the type of remote control(Support Code): Learning Code(1527), Fixed Code(2262).
*Support storing the quantity of remote control: 25 Pcs(NOTE: The system can store for 25 pcs of remotes, if the remote get more than 25 pcs, the initial remote control will be lost).
*RF Working Mode: Superheterodyne Reception (Modulation Mode:ASK).
*Perfect suitable for remote control of electric lamp, electrically operated gate, electrically operated window, roller shutter door, garage door and other telecommand equipments.
Specifications(Technical Index):
Model: KR2201-4
Product Type: Single Channel Remote Control Switch
Encoding Type: Intelligent Learning Code
RF Working Mode: Superheterodyne Reception
Modulation Mode:ASK
RF Frequency: 433MHz
Working Mode:Momentary, Toggle and Latching
Input Voltage: AC 85V~250V
Quiescent Current: 5mA
Receiving Sensitivity: >97dbm
Remote Control Range: >50m (Free Space)
Wired Connection Way: Fixed Wiring Pillar
Output Terminal: NO,COM,NC
NO: Normal Open(Output).
COM:Common(Output).
NC: Normal Close(Output).
Color: Green(PCB Board), Black (Outside Shell)
Circuit Board Size: 6.5 * 3.2 * 1.6cm/ 2.5 * 1.25 * 0.62in
Circuit Board Weight:20g / 0.7oz
Package Size:8.1 * 3.6 * 2.0cm / 3.1 * 1.2 * 0.78in
Package Weight: 36g /1.26oz
Package List 1:

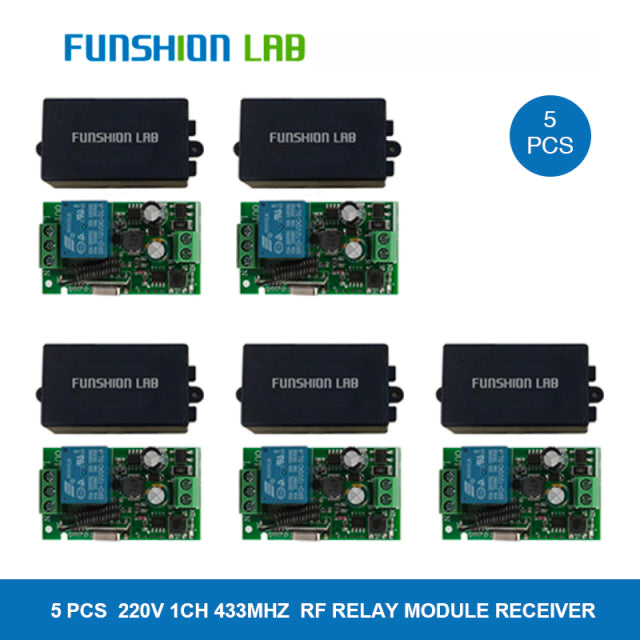

5 Pcs * KR2201-4 Remote Control Switch (Include Outside Shell)
Package List 2:

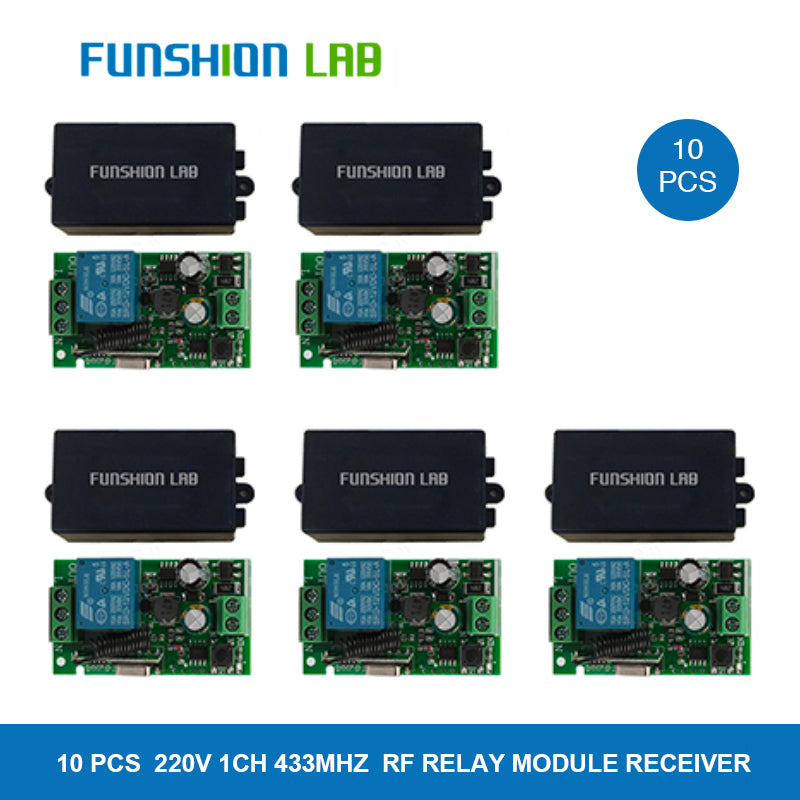

10 Pcs * KR2201-4 Remote Control Switch (Include Outside Shell)
Operation Introduction:
About Working Mode:
Momentary: Press the remote button, the relay connects, release the remote button,  the relay disconnects.
Toggle: Press once the remote button, the relay connects, press the remote button  twice, the relay disconnects.
Latching: Press the remote button A, the relay connects, press the remote button  B, the relay disconnect.
Clearing the Code:
Press the Learning Button on the receivers for 8 times, the codes will be cleaned. After cleaning the code, all the remote control cannot work any more.
Learning the Code:(Momentary)
Press the learning key on the receiver once time, it comes into momentary setting  mode.
Wait for a moment, the LED will be off , it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come  off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code: (Toggle)
Press the learning key on the receiver twice time, it comes into toggle setting  mode.
Wait for a moment, the LED will be off , it comes into learning state.
Press the remote button, LED indicator on the receiver board will flash then come  off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the Code:( Latching)
Note: When you choose for latching mode, in order to learn more remote control,  you need to learn two different button, the first time learning is for ON, the  second time learning for OFF.
For example: Button A = ON, Button B = OFF
Press the learning key on the receiver triple time, it comes into latching mode .
Wait for a moment, the LED indicator on the receiver board will flash then come  off.
Press the remote button A. LED flash for 5 times.
Press the remote button B. LED flash for 5 times
After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON, B = OFF.
